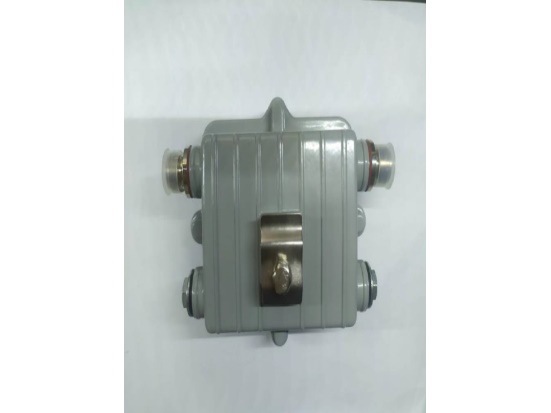

LETSCOM-70-30dB-103
Low Noise Amplifier
| Frequency Range | 430 to 450MHz ( BW 20MHz @ 1dB ) |
| Band Rejection | Typically >35dB @ 145MHz, >60dB @ 900MHz |
| Gain Adjustable | Typically +29dB Max, 20dB Min @ 435MHz |
| Noise Figure | 1dB (Typically <0.9dB @ 435MHz) |
| Through Loss | 0.3dB @ 435MHz (Bypass Mode) |
| RF Power Handling | 50W CW (Un-Sequenced) 100W PEP (Sequenced) |
| Minimum RF Input | +20dBm ( 100mW ) To activate the RF sensing circuit |
| Operating Voltage | +11 to 15vdc (+12vdc @ 180mA Recommended) |
