Product SkyTraid Harmony

SkyTraid Harmony

Product Description

APRS, AIS and ADS-B payload module

Share：

ProductDetail
Specification

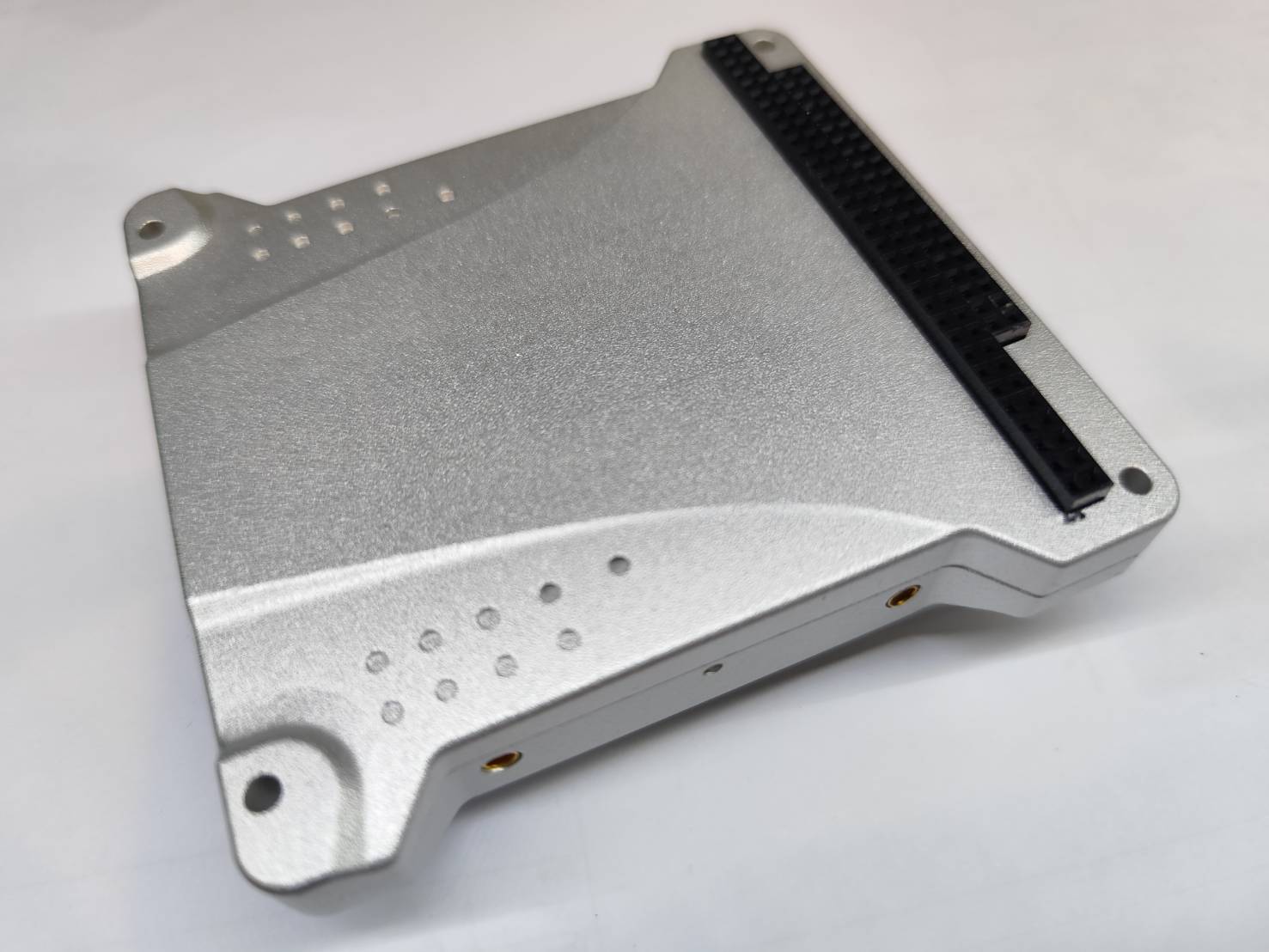

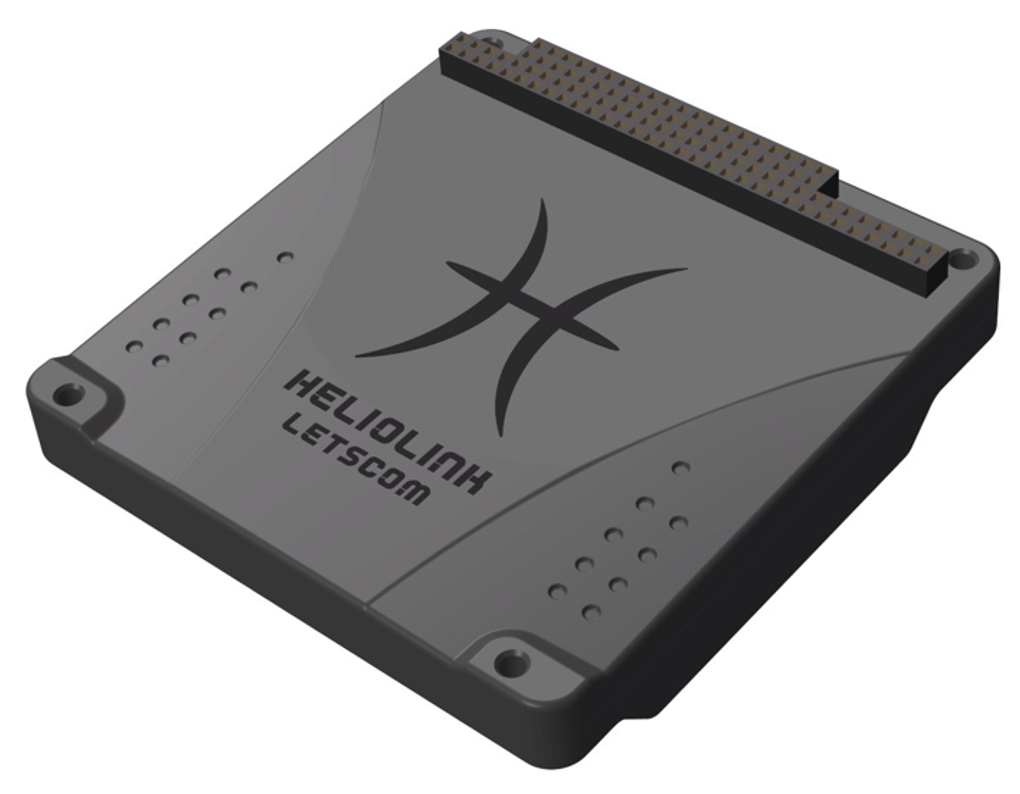

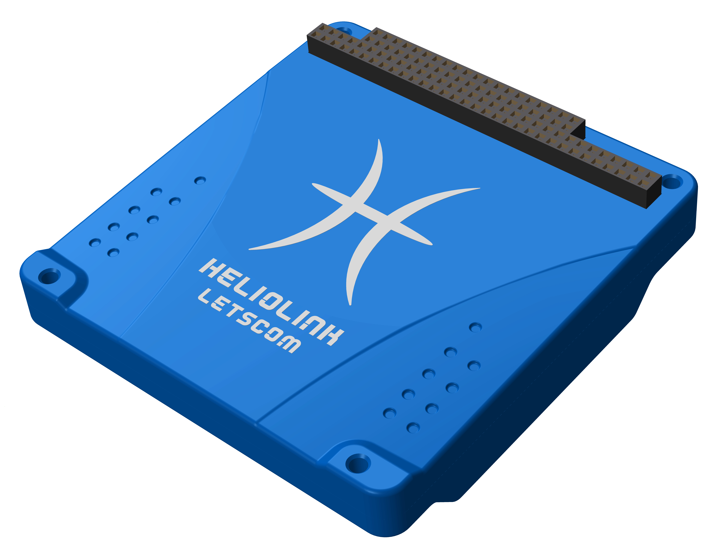

SkyTriad Harmony is an advanced CubeSat payload that seamlessly integrates three key functionalities: Automatic Packet Reporting System (APRS), Automatic Identification System (AIS), and Automatic Dependent Surveillance–Broadcast (ADS-B) into a single compact module. Crafted with expertise, this module has proven its robustness and reliability through rigorous testing in space environment conditions.
General Specifications
Dimensions Standard fit to CubeSat
Weight 200g
Operating Temperature -25°C to +80°C
Data connector Standard alone and ISA Bus, or PC/104 (customization)
Power consumption 800 mW/Rx ~ 1350 mW/Tx
Radiation Hardened Designed for space radiation tolerance
Thermal Control Active thermal control system and temperature monitoring, and via APRS beacon












APRS Transceiver
  • Standard AX.25, 1200bps
  • Amateur Radio standard operation.
  • Beacon and Digipeater supported.
  • RF 30dBm output.
  • Interface: UART 9600bps, TTL level
  • GPSR supported (optional, see the feature of CosmoOrbit XE GPSR).
  • Antenna Port: MMCX standard alone.
  • Support for telemetry downlink
AIS Receiver
  • Marine Band VHF channels 87B & 88B
  • AIS Message Decoding output via UART 115200bps TTL level.
  • Antenna Port: MMCX standard alone.
ADS-B Receiver
  • High sensitivity RF system.
  • Decoding output via UART with CTS/RTS hardware handshake.
  • Antenna Port: MMCX standard alone.
ProductDetail
SkyTriad Harmony is an advanced CubeSat payload that seamlessly integrates three key functionalities: Automatic Packet Reporting System (APRS), Automatic Identification System (AIS), and Automatic Dependent Surveillance–Broadcast (ADS-B) into a single compact module. Crafted with expertise, this module has proven its robustness and reliability through rigorous testing in space environment conditions.
Specification
General Specifications
Dimensions Standard fit to CubeSat
Weight 200g
Operating Temperature -25°C to +80°C
Data connector Standard alone and ISA Bus, or PC/104 (customization)
Power consumption 800 mW/Rx ~ 1350 mW/Tx
Radiation Hardened Designed for space radiation tolerance
Thermal Control Active thermal control system and temperature monitoring, and via APRS beacon












APRS Transceiver
  • Standard AX.25, 1200bps
  • Amateur Radio standard operation.
  • Beacon and Digipeater supported.
  • RF 30dBm output.
  • Interface: UART 9600bps, TTL level
  • GPSR supported (optional, see the feature of CosmoOrbit XE GPSR).
  • Antenna Port: MMCX standard alone.
  • Support for telemetry downlink
AIS Receiver
  • Marine Band VHF channels 87B & 88B
  • AIS Message Decoding output via UART 115200bps TTL level.
  • Antenna Port: MMCX standard alone.
ADS-B Receiver
  • High sensitivity RF system.
  • Decoding output via UART with CTS/RTS hardware handshake.
  • Antenna Port: MMCX standard alone.
