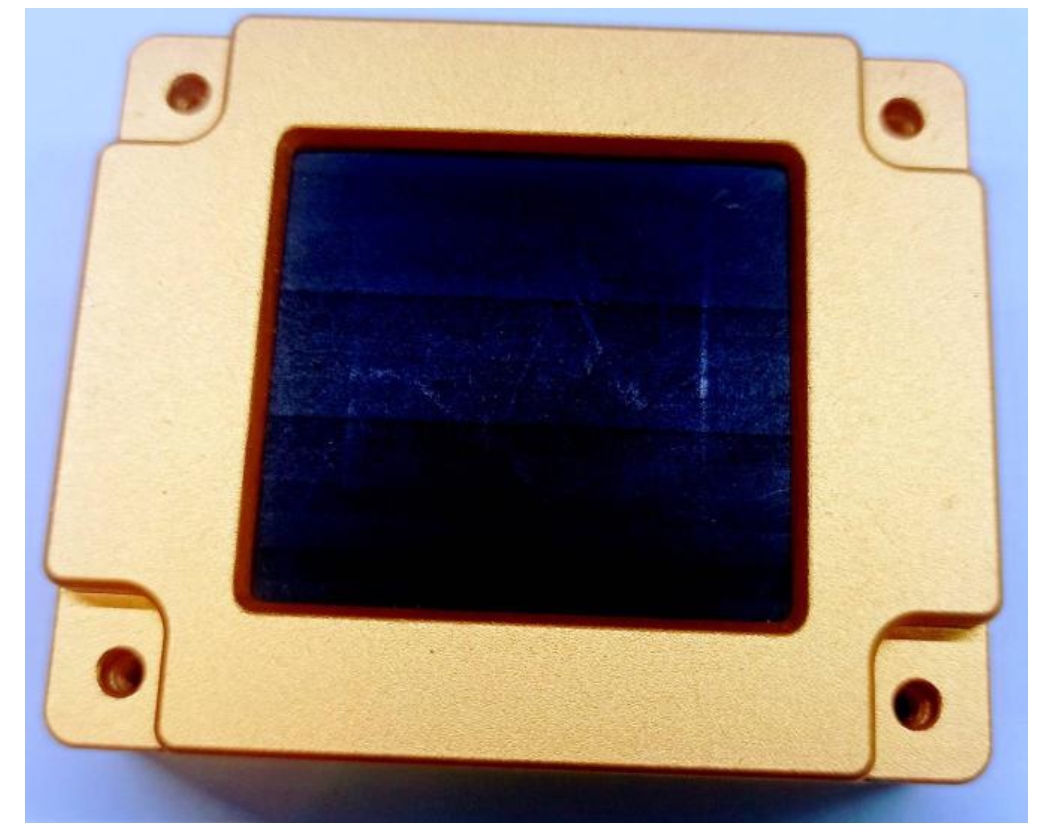

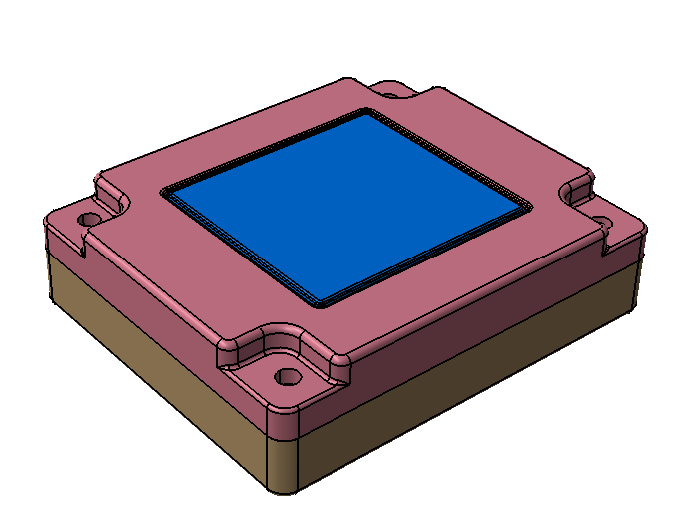

The CosmoOrbit XE is a high-performance multi‐constellation GNSS Receiver specifically designed for space applications. It offers a range of advanced features including UART (NMEA) data output and a 1PPS timing output to ensure reliable global positioning and tracking in extreme environments with high precision requirements.
| Acceptable Voltage Range | 4.8–5.3 V |
| Operating Current | 70 mA |
| Timing | 1PPS (3.3 V TTL amplitude) |
| Dimensions | 60 × 45 × 15 mm |
| Weight | <120 g |
| Antenna | Integrated active high‐gain antenna |
| Power | 5 V / GND |
| Control | RESET, ENABLE |
| Timing | 1PPS (1 Hz) |
| Communication | UART |
| I/O logic level | 3.3 V TTL (Input: VIH ≥ 2.31 V, VIL ≤ 0.99 V; Output: VOH ≥ 2.4 V @ −6 mA, VOL ≤ 0.4 V @ 6 mA) |
| Interface | UART (3.3 V TTL), default baud Rate 115200 bps, 8N1 |
| Protocol | NMEA‐0183; default sentences (GGA/GLL/GSA/GSV/RMC/VTG/ZDA) |
| Parameter configuration | None |
| TXD channels | 4 |
| Operating Temperature | -40°C ~ +85°C |
| Storage temperature | -65°C ~ +150°C |
| Radiation Dose | Approximately 6 Krad (200MeV proton) |
The CosmoOrbit XE is a high-performance multi‐constellation GNSS Receiver specifically designed for space applications. It offers a range of advanced features including UART (NMEA) data output and a 1PPS timing output to ensure reliable global positioning and tracking in extreme environments with high precision requirements.
| Acceptable Voltage Range | 4.8–5.3 V |
| Operating Current | 70 mA |
| Timing | 1PPS (3.3 V TTL amplitude) |
| Dimensions | 60 × 45 × 15 mm |
| Weight | <120 g |
| Antenna | Integrated active high‐gain antenna |
| Power | 5 V / GND |
| Control | RESET, ENABLE |
| Timing | 1PPS (1 Hz) |
| Communication | UART |
| I/O logic level | 3.3 V TTL (Input: VIH ≥ 2.31 V, VIL ≤ 0.99 V; Output: VOH ≥ 2.4 V @ −6 mA, VOL ≤ 0.4 V @ 6 mA) |
| Interface | UART (3.3 V TTL), default baud Rate 115200 bps, 8N1 |
| Protocol | NMEA‐0183; default sentences (GGA/GLL/GSA/GSV/RMC/VTG/ZDA) |
| Parameter configuration | None |
| TXD channels | 4 |
| Operating Temperature | -40°C ~ +85°C |
| Storage temperature | -65°C ~ +150°C |
| Radiation Dose | Approximately 6 Krad (200MeV proton) |
