OBC | CubeSat On-board Computer
Product Description

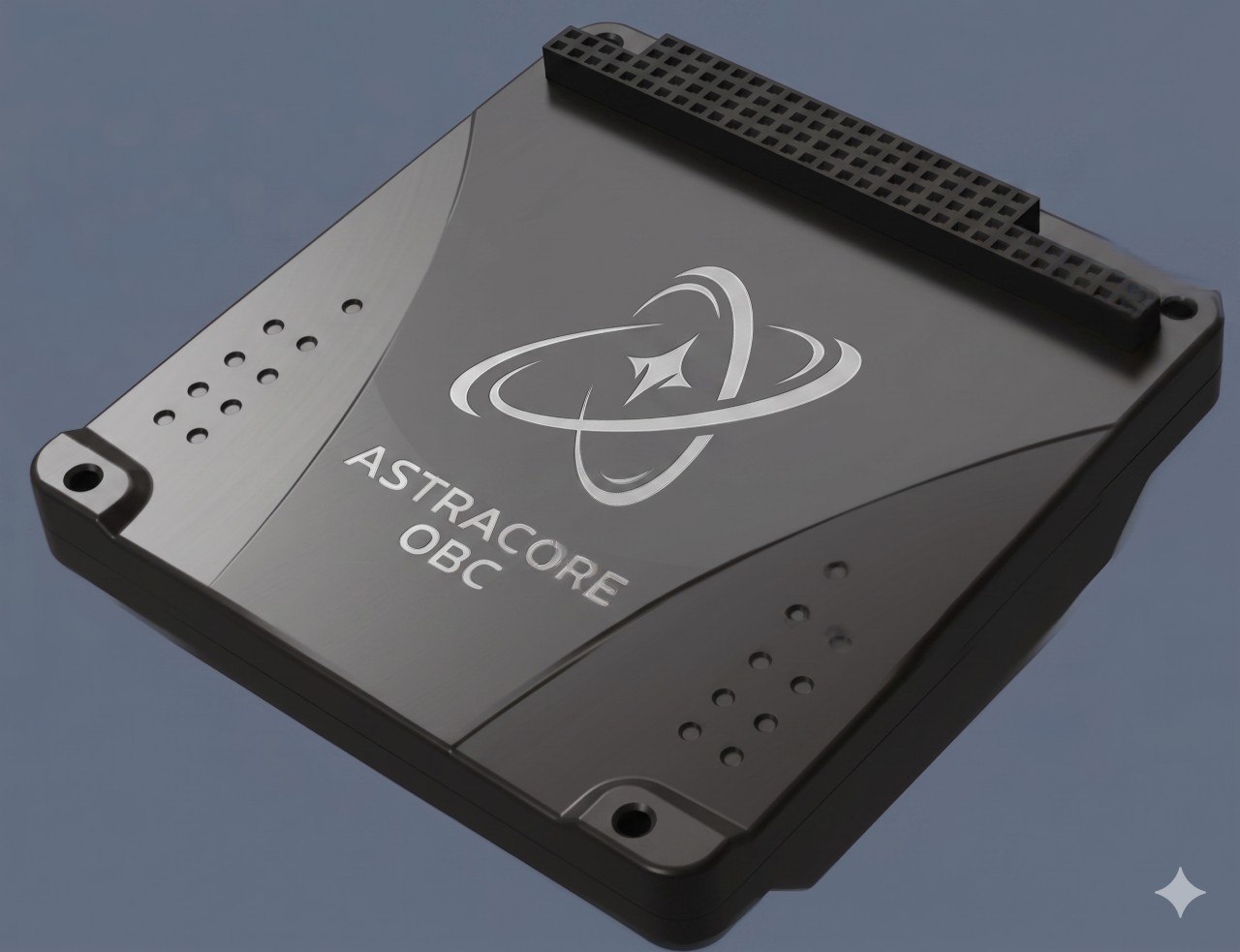

OBC Command and Data Handling Board
Pre-engineered on-board computer that serves as the platform control computer for communications, payload control, and mission data management.
OBC provides 3 UART channels that can be assigned to VHF, UHF, and S-band communication modules. If they are not assigned to communication modules, users can repurpose them for other UART use. RS-485 / SPI / UART, SPI, CAN Bus, I2C, ADC, DAC, PWM, GPIO, and PPS are also available for subsystem and payload integration.
Supports hardware-accelerated cryptography, Secure Boot, differential firmware updates, and KVDB configuration data management.
OBC uses an SD card for payload data, event logs, system state, and telemetry around fault events.
The 90 x 96 mm board outline supports CubeSat stack configuration, harness routing, and third-party subsystem integration.
Define scheduling, mode transitions, ground command handling, and safe-mode logic as traceable platform operations.
Integrate UART, CAN Bus, SPI, I2C, GPIO, and PPS interfaces with ADCS, RF, EPS, and payload controllers.
Clear interface configuration, firmware update, data logging, and recovery functions shorten product adoption and system verification.
| Step | Description |
|---|---|
| Requirements | Confirm mission modes, payload data volume, ground packets, time sync, and subsystem interface needs. |
| Configuration | Configure buses, storage, secure boot, firmware update, and recovery strategy around mission needs. |
| Integration | Run board interface tests, mission scenarios, and event-log checks to confirm product functions and verification results. |
Specifications are grouped by processing, communication interfaces, I/O, storage, security, and mechanical information.
| Category | Specification |
|---|---|
| Interfaces | 3 RF-module UART channels, 2 RS-485 / SPI / UART channels, 2 CAN Bus channels, 4 SPI / I2C channels, 13 I/O and sync channels |
| Product Capabilities | Dual-core processing core, 1MB SRAM, Secure Boot / FW update, SD mission data storage |
| Item | Specification |
|---|---|
| Processing core | Dual-core 32-bit Arm Cortex-M7 / Cortex-M4 MCU up to 480MHz / 240MHz, with FPU, DSP, and cache for scheduling, communications, and subsystem control. |
| Flash | 2MB dual-bank Flash with read-while-write support. |
| SRAM | 1MB SRAM including TCM, user SRAM, and backup-domain SRAM. |
| Item | Specification |
|---|---|
| RF-module UART | 3 UART channels can be assigned to VHF, UHF, and S-band communication modules. If they are not assigned to communication modules, users can repurpose them for other UART use. |
| RS-485 / SPI / UART | 2 configurable interfaces for external subsystems or payloads. |
| SPI | 2 channels for external subsystems or payloads. |
| CAN Bus | 2 channels for platform buses or external subsystems. |
| I2C | 2 channels for external subsystems or payloads. |
| Item | Specification |
|---|---|
| ADC | 2 channels for external signal measurement. |
| DAC | 1 channel for external analog output. |
| PWM | 4 channels for control signal output. |
| GPIO | 5 channels for general digital input and output. |
| PPS | 1 channel for time synchronization. |
| Item | Specification |
|---|---|
| Security and firmware management | Hardware-accelerated cryptography, Secure Boot, differential firmware updates, and KVDB configuration data management. |
| Mission data storage | SD card support for payload data, event logs, system state, and telemetry around fault events. |
| Mechanical outline | 90 x 96 mm board outline for CubeSat stack configuration. |
