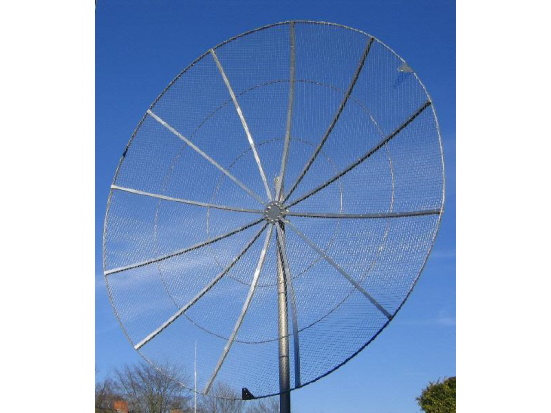

Model: 1M9-0611G 1.9M MESH

PRODUCT

Model: 1M9-0611G 1.9M MESH

Share:

ProductDetail
Gain calculation
1296MHz: Gain 24.2 dBd, Beam widths@ 3dB: 9.1 degree
2320MHz: Gain 29.2 dBd, Beam widths@ 3dB: 5.1 degree
3456MHz: Gain 32.4 dBd, Beam widths@ -3dB: 3.4 degree
5760MHz: Gain 35.9 dBd, Beam widths@ -3dB: 2.0 degree

Application Notes:

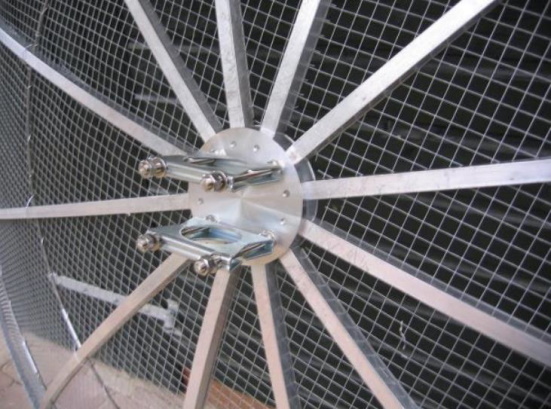

◆ The master clamp standard mount can be support up to 52mm. The extra big clamp mount also available up to 90mm for customization.
◆ The 2 kinds mesh could applicable, it is 6mm(< 6GHz) or 2.8mm (>10GHz)
