APRS (Automatic Position Reporting System)

Repeater / Store & Forward

The data collection function can be configured for repeater or store-and-forward operation to the ground station.

Applications

• Vehicle and vessel positioning with data collection.
• Ecological and seismic tracking and detection: birds, animals, landslides, etc.
• Ocean windmills and widespread-area power grid management.

*Real-time repeat: This optional function is disabled. The packet data real-time repeater function is determined by frequency coordination and project application.

General Specification

• Power Supply: 5 V
• Power Consumption: 800 mW
• Operating Temperature: -20°C to +80°C
• Temperature Sensor

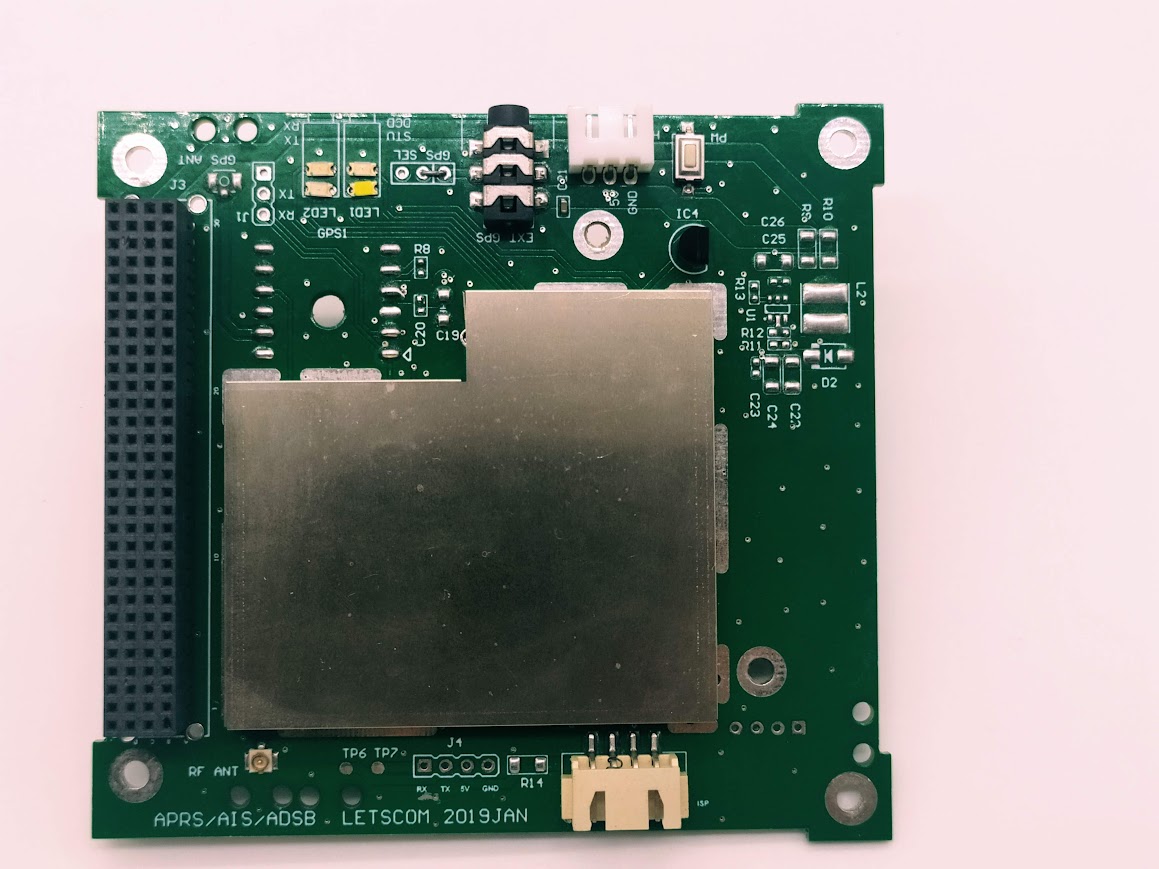

• Dimension: PC104 size compatible

APRS Specification

• Receive Sensitivity: -126 dBm
• RX Frequency: 140–175 MHz / 400–480 MHz
• TX Power: 30/27 dBm (optional)
• Modulation Schemes: FSK
• Data Rates: AX.25 1200 bps
• RF Connector: IPX
• Data Interface: UART TTL standalone
